Introduction

This documentation details using config-download.

config-download is the feature that enables deploying the Overcloud software configuration with Ansible in TripleO.

Summary

Starting with the Queens release, it is possible to use Ansible to apply the overcloud configuration. In the Rocky release, this method is the new default behavior.

Ansible is used to replace the communication and transport of the software configuration deployment data between Heat and the Heat agent (os-collect-config) on the overcloud nodes.

Instead of os-collect-config running on each overcloud node and polling for deployment data from Heat, the Ansible control node applies the configuration by running ansible-playbook with an Ansible inventory file and a set of playbooks and tasks.

The Ansible control node (the node running ansible-playbook) is the undercloud by default.

config-download is the feature name that enables using Ansible in this manner, and will often be used to refer to the method detailed in this documentation.

Heat is still used to create the stack and all of the OpenStack resources. The same parameter values and environment files are passed to Heat as they were previously. During the stack creation, Heat creates any OpenStack service resources such as Nova servers and Neutron networks and ports, and then creates the software configuration data necessary to configure the overcloud via SoftwareDeployment resources.

The difference with config-download is that although Heat creates all the deployment data necessary via SoftwareDeployment resources to perform the overcloud installation and configuration, it does not apply any of the software deployments. The data is only made available via the Heat API. Once the stack is created, an additional config-download Mistral workflow is triggered that downloads all of the deployment data from Heat.

Using the downloaded deployment data, the workflow then generates Ansible playbooks and tasks that are used by the undercloud to complete the configuration of the overcloud using ansible-playbook.

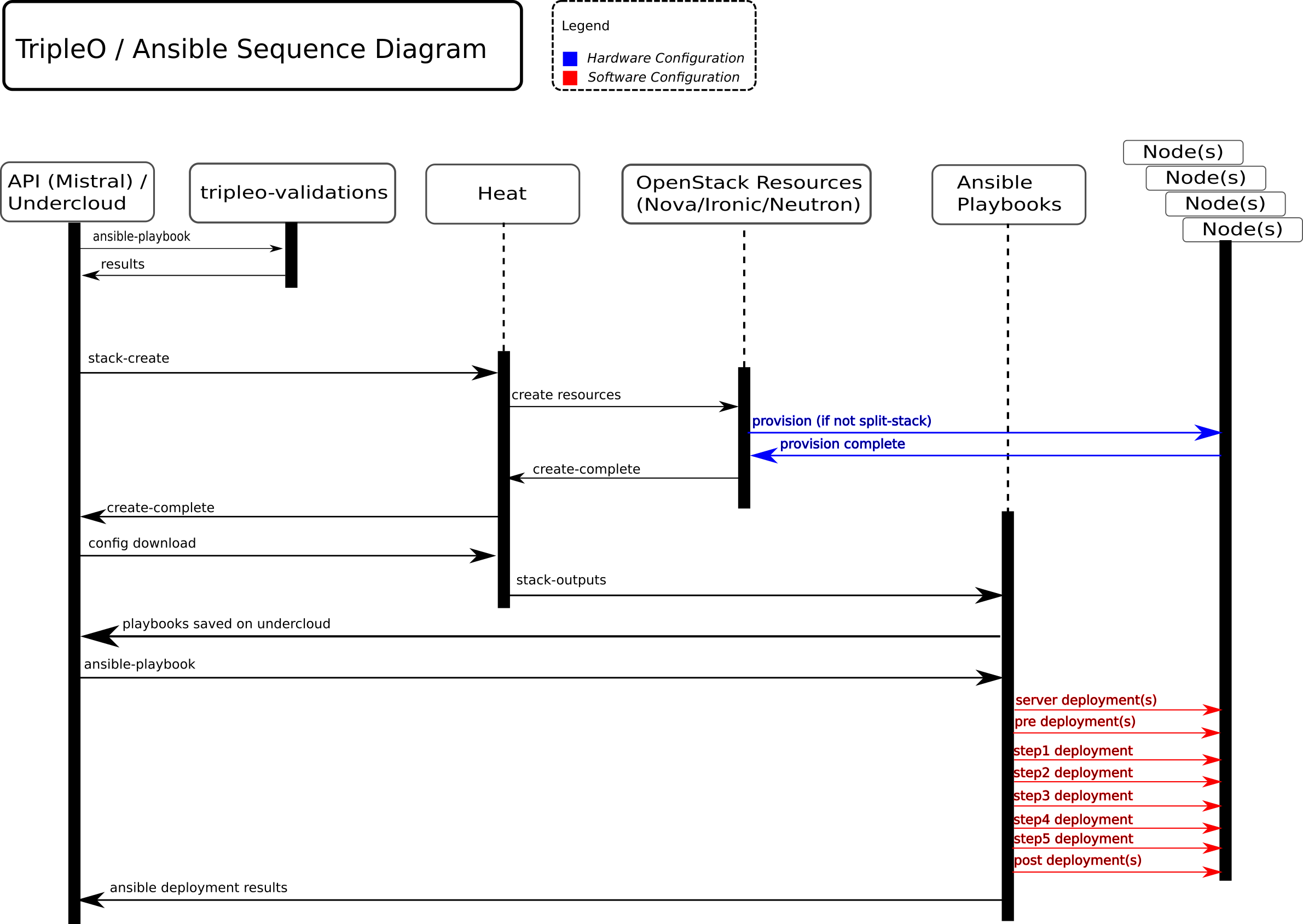

This diagram details the overall sequence of how using config-download completes an overcloud deployment:

../../_images/tripleo_ansible_arch.png

Deployment with config-download

Ansible and config-download are used by default when openstack overcloud deploy (tripleoclient) is run. The command is backwards compatible in terms of functionality, meaning that running openstack overcloud deploy will still result in a full overcloud deployment.

The deployment is done through a series of automated workflows and steps in tripleoclient. All of the workflow steps are automated by tripleoclient and Mistral workflow(s). The workflow steps are summarized as:

  1. Create deployment plan
  2. Create Heat stack along with any OpenStack resources (Neutron networks, Nova/Ironic instances, etc)
  3. Create software configuration within the Heat stack
  4. Create tripleo-admin ssh user
  5. Download the software configuration from Heat
  6. Applying the downloaded software configuration to the overcloud nodes with ansible-playbook.

Creating the tripleo-admin user on each overcloud node is necessary since ansible uses ssh to connect to each node to perform configuration.

The following steps are done to create the tripleo-admin user:

  1. Create temporary ssh keys on the undercloud
  2. Use a deployer-specified private ssh key (defaults to ~/.ssh/id_rsa) to connect to each overcloud node as a deployer specified user (defaults to heat-admin) and adds the temporary public ssh key to ~/.ssh/authorized_keys for that user.
  3. Executes a Mistral workflow to create tripleo-admin on each node, passing as input the temporary private ssh key and ssh user to Mistral.
  4. The workflow creates the tripleo-admin user and gives sudo permissions to the user, as well as creates and stores a new ssh keypair specific to tripleo-admin. This keypair (private and public) are stored in the Mistral database.
  5. After the completion of the workflow, the temporary ssh public key is deleted from ~/.ssh/authorized_keys on each overcloud node, and the temporary keypair is then deleted from the undercloud.

With these steps, the deployer-specified ssh key which is used for the inital connection is never sent or stored by any API service.

To override the deployer specified ssh private key and user, there are cli args available with openstack overcloud deploy:

--overcloud-ssh-user # defaults to heat-admin
--overcloud-ssh-key  # defaults to ~/.ssh/id_rsa

The values for these cli arguments must be the same for all nodes in the overcloud deployment. overcloud-ssh-key should be the private key that corresponds with the public key specified by the Heat parameter KeyName when using Ironic deployed nodes.

Deployment Output

After the tripleo-admin user is created, ansible-playbook will be used to configure the overcloud nodes.

The output from ansible-playbook will begin to appear in the console and will be updated periodically as more tasks are applied.

When ansible is finished a play recap will be shown, and the usual overcloudrc details will then be displayed. The following is an example of the end of the output from a successful deployment:

PLAY RECAP ****************************************************************
compute-0                  : ok=134  changed=48   unreachable=0    failed=0
openstack-0                : ok=164  changed=28   unreachable=0    failed=1
openstack-1                : ok=160  changed=28   unreachable=0    failed=0
openstack-2                : ok=160  changed=28   unreachable=0    failed=0
pacemaker-0                : ok=138  changed=30   unreachable=0    failed=0
pacemaker-1                : ok=138  changed=30   unreachable=0    failed=0
pacemaker-2                : ok=138  changed=30   unreachable=0    failed=0
undercloud                 : ok=2    changed=0    unreachable=0    failed=0

Overcloud configuration completed.
Overcloud Endpoint: http://192.168.24.8:5000/
Overcloud rc file: /home/stack/overcloudrc
Overcloud Deployed

When a failure happens, the deployment will stop and the error will be shown.

Review the PLAY RECAP which will show each host that is part of the overcloud and the grouped count of each task status.

Deployment Status

Since Heat is no longer the source of authority on the status of the overcloud deployment, a new tripleoclient command is available to show the overcloud deployment status:

openstack overcloud status

The output will report the status of the deployment, taking into consideration the result of all the steps to do the full deployment. The following is an example of the output:

[stack@undercloud ]$ openstack overcloud status

+-----------+---------------------+---------------------+-------------------+
| Plan Name |       Created       |       Updated       | Deployment Status |
+-----------+---------------------+---------------------+-------------------+
| overcloud | 2018-05-03 21:24:50 | 2018-05-03 21:27:59 |   DEPLOY_SUCCESS  |
+-----------+---------------------+---------------------+-------------------+

A different plan name can be specified with --plan:

[stack@undercloud ]$ openstack overcloud status --plan my-deployment

+---------------+---------------------+---------------------+-------------------+
| Plan Name     |       Created       |       Updated       | Deployment Status |
+-----------+-------------------------+---------------------+-------------------+
| my-deployment | 2018-05-03 21:24:50 | 2018-05-03 21:27:59 |   DEPLOY_SUCCESS  |
+---------------+---------------------+---------------------+-------------------+

Deployment failures can also be shown with a new command:

[stack@undercloud ]$ openstack overcloud failures --plan my-deployment

Note

Heat CLI commands such as openstack stack failures list can still be used to show stack failures, however since Heat no longer applies software configuration, it will no longer show any errors related to configuration.

Setting the status

The status of the deployment will be automatically set by the API used by the Mistral workflows. However, in some cases, it may be required to manually set the status to reflect what has been done manually outside of the API. The following commands can be used to manually set the status.

Set the status to DEPLOY_SUCCESS:

openstack workflow execution create tripleo.deployment.v1.set_deployment_status_success

Set the status to DEPLOYING:

openstack workflow execution create tripleo.deployment.v1.set_deployment_status_deploying

Set the status to DEPLOY_FAILED:

openstack workflow execution create tripleo.deployment.v1.set_deployment_status_failed

The default plan name of overcloud will be used in the above commands. It can be overridden with any of the above commands if needed:

openstack workflow execution create tripleo.deployment.v1.set_deployment_status_success '{"plan":"my-cloud-name"}'

Deployment Log

The ansible part of the deployment creates a log file that is saved on the undercloud. The log file is available at /var/lib/mistral/<plan name>/ansible.log.

Ansible configuration

When ansible-playbook runs, it will use a configuration file with the following default values:

[defaults]
retry_files_enabled = False
log_path = <working directory>/ansible.log
forks = 25

[ssh_connection]
ssh_args = -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no -o ControlMaster=auto -o ControlPersist=60s
control_path_dir = <working directory>/ansible-ssh

Any of the above configuration options can be overridden, or any additional ansible configuration used by passing the path to an ansible configuration file with --override-ansible-cfg on the deployment command.

For example the following command will use the configuration options from /home/stack/ansible.cfg. Any options specified in the override file will take precendence over the defaults:

openstack overcloud deploy \
  ...
  --override-config-file /home/stack/ansible.cfg

config-download with deployed-server

When using config-download with deployed-server (pre-provisioned nodes), a HostnameMap parameter must be provided. Create an environment file to define the parameter, and assign the node hostnames in the parameter value. The following example shows a sample value:

parameter_defaults:
  HostnameMap:
    overcloud-controller-0: controller-00-rack01
    overcloud-controller-1: controller-01-rack02
    overcloud-controller-2: controller-02-rack03
    overcloud-novacompute-0: compute-00-rack01
    overcloud-novacompute-1: compute-01-rack01
    overcloud-novacompute-2: compute-02-rack01

Write the contents to an environment file such as hostnamemap.yaml, and pass the environment as part of the deployment command with -e.

Mistral workflow

The Mistral workflow that will be called by tripleoclient and runs config-download and ansible-playbook is tripleo.deployment.v1.config_download_deploy.

Ansible project directory

The workflow will create an Ansible project directory with the plan name under /var/lib/mistral. For the default plan name of overcloud the working directory will be:

/var/lib/mistral/overcloud

The project directory is where the downloaded software configuration from Heat will be saved. It also includes other ansible-related files necessary to run ansible-playbook to configure the overcloud.

All of the files in the Ansible project directory at /var/lib/mistral/<plan> are owned by the mistral user and readable by the mistral group from the mistral-executor container. The interactive user account on the undercloud can be granted read-only access to these files by using the following setacl command:

sudo setfacl -R -m u:$USER:rwx /var/lib/mistral

Once a member of the mistral group, the contents of /var/lib/mistral/<plan> can be browsed, examined, and ansible-playbook rerun if desired.

The contents of the project directory include the following files:

tripleo-ansible-inventory.yaml
Ansible inventory file containing hosts and vars for all the overcloud nodes.
ansible.log
Log file from the last run of ansible-playbook.
ansible.cfg
Config file used when running ansible-playbook.
ansible-playbook-command.sh
Executable script that can be used to rerun ansible-playbook.
ssh_private_key
Private ssh key used to ssh to the overcloud nodes.

Reproducing ansible-playbook

Once in the project directory created by the Mistral workflow, simply run ansible-playbook-command.sh to reproduce the deployment:

./ansible-playbook-command.sh

Any additional arguments passed to this script will be passed unchanged to the ansible-playbook command:

./ansible-playbook-command.sh --check

Using this method it is possible to take advantage of various Ansible features, such as check mode (--check), limiting hosts (--limit), or overriding variables (-e).

Git repository

The ansible project directory is a git repository. Each time config-download downloads the software configuration data from Heat, the project directory will be checked for differences. A new commit will be created if there are any changes from the previous revision.

From within the ansible project directory, standard git commands can be used to explore each revision. Commands such as git log, git show, and git diff are useful ways to describe how each commit to the software configuration differs from previous commits.

Applying earlier versions of configuration

Using commands such as git revert or git checkout, it is possible to update the ansible project directory to an earlier version of the software configuration.

It is possible to then apply this earlier version with ansible-playbook. However, caution should be exercised as this could lead to a broken overcloud deployment. Only well understood earlier versions should be attempted to be applied.

Note

Data migration changes will never be undone by applying an earlier version of the software configuration with config-download. For example, database schema migrations that had already been applied would never be undone by only applying an earlier version of the configuration.

Software changes that were related to hardware changes in the overcloud (such as scaling up or down) would also not be completely undone by applying earlier versions of the software configuration.

Note

Reverting to earlier revisions of the project directory has no effect on the configuration stored in the Heat stack. A corresponding change should be made to the deployment templates, and the stack updated to make the changes permanent.

Manual config-download

The Mistral workflow that runs config-download can be skipped when running openstack overcloud deploy by passing --stack-only. This will cause tripleoclient to only deploy the Heat stack.

When using --stack-only, the deployment data needs to be pulled from Heat with a separate command and ansible-playbook run manually. This enables more manual interaction and debugging.

This method is described in the following sections.

Run config-download

When using the --stack-only argument, the deployment data needs to be first downloaded from Heat. To manually download the software configuration data, use the openstack overcloud config download command:

openstack overcloud config download \
  --name overcloud \
  --config-dir config-download

The ansible data will be generated under a directory called config-download as specified by the --config-dir CLI argument.

Generate an inventory

To generate an inventory file to use with ansible-playbook use the tripleo-ansible-inventory command:

tripleo-ansible-inventory \
  --ansible_ssh_user centos \
  --static-yaml-inventory inventory.yaml

The above example shows setting the ansible ssh user as centos. This can be changed depending on the environment. See tripleo-ansible-inventory --help for a full list of CLI arguments and options.

Run ansible-playbook

Once the configuration has been downloaded and the inventory genreated, run ansible-playbook to configure the overcloud nodes:

ansible-playbook \
  -i inventory.yaml \
  --private-key /path/private/ssh/key \
  --become \
  config-download/deploy_steps_playbook.yaml

Note

--become is required when running ansible-playbook.

All default ansible configuration values will be used when manually running ansible-playbook in this manner. These values can be customized through ansible configuration.

The following minimum configuration is recommended and matches the default values used by the mistral workflow that runs config-download:

[defaults]
log_path = ansible.log
forks = 25
timeout = 30

[ssh_connection]
ssh_args = -o UserKnownHostsFile=/dev/null -o StrictHostKeyChecking=no -o ControlMaster=auto -o ControlPersist=30m
retries = 8
pipelining = True

Note

When running ansible-playbook manually, the overcloud status as returned by openstack overcloud status won’t be automatically updated due to the configuration being applied outside of the API.

See Deployment Status for setting the status manually.

Ansible project directory contents

This section details the structure of the config-download generated Ansible project directory.

Playbooks

deploy_steps_playbook.yaml

Initial deployment or template update (not minor update)

Further detailed in deploy_steps_playbook.yaml

fast_forward_upgrade_playbook.yaml
Fast forward upgrades
post_upgrade_steps_playbook.yaml
Post upgrade steps for major upgrade
pre_upgrade_rolling_steps_playbook.yaml
Pre upgrade steps for major upgrade
update_steps_playbook.yaml
Minor update steps
upgrade_steps_playbook.yaml
Major upgrade steps

deploy_steps_playbook.yaml

deploy_steps_playbook.yaml is the playbook used for deployment and template update. It applies all the software configuration necessary to deploy a full overcluod based on the templates provided as input to the deployment command.

This section will summarize at high level the different ansible plays used within this playbook. The play names shown here are the same names used within the playbook and are what will be shown in the output when ansible-playbook is run.

The ansible tags set on each play are also shown below.

Gather facts from undercloud

Fact gathering for the undercloud node

tags: facts

Gather facts from overcloud

Fact gathering for the overcloud nodes

tags: facts

Load global variables

Loads all varaibles from l`global_vars.yaml`

tags: always

Common roles for TripleO servers

Applies common ansible roles to all overcloud nodes. Includes tripleo-bootstrap for installing bootstrap packages and tripleo-ssh-known-hosts for configuring ssh known hosts.

tags: common_roles

Overcloud deploy step tasks for step 0

Applies tasks from the deploy_steps_tasks template interface

tags: overcloud, deploy_steps

Server deployments

Applies server specific Heat deployments for configuration such as networking and hieradata. Includes NetworkDeployment, <Role>Deployment, <Role>AllNodesDeployment, etc.

tags: overcloud, pre_deploy_steps

Host prep steps

Applies tasks from the host_prep_steps template interface

tags: overcloud, host_prep_steps

External deployment step [1,2,3,4,5]

Applies tasks from the external_deploy_steps_tasks template interface. These tasks are run against the undercloud node only.

tags: external, external_deploy_steps

Overcloud deploy step tasks for [1,2,3,4,5]

Applies tasks from the deploy_steps_tasks template interface

tags: overcloud, deploy_setps

Overcloud common deploy step tasks [1,2,3,4,5]

Applies the common tasks done at each step to include puppet host configuration, docker-puppet.py, and paunch (container configuration).

tags: overcloud, deploy_setps

Server Post Deployments

Applies server specific Heat deployments for configuration done after the 5 step deployment process.

tags: overcloud, post_deploy_steps

External deployment Post Deploy tasks

Applies tasks from the external_post_deploy_steps_tasks template interface. These tasks are run against the undercloud node only.

tags: external, external_deploy_steps

Task files

These task files include tasks specific to their intended function. The task files are automatically used by specific playbooks from the previous section.

boot_param_tasks.yaml

common_deploy_steps_tasks.yaml

docker_puppet_script.yaml

external_deploy_steps_tasks.yaml

external_post_deploy_steps_tasks.yaml

fast_forward_upgrade_bootstrap_role_tasks.yaml

fast_forward_upgrade_bootstrap_tasks.yaml

fast_forward_upgrade_post_role_tasks.yaml

fast_forward_upgrade_prep_role_tasks.yaml

fast_forward_upgrade_prep_tasks.yaml

fast_forward_upgrade_release_tasks.yaml

upgrade_steps_tasks.yaml

update_steps_tasks.yaml

pre_upgrade_rolling_steps_tasks.yaml

post_upgrade_steps_tasks.yaml

post_update_steps_tasks.yaml

Heat Role directories

Each Heat role from the roles data file used in the deployment (specified with -r from the openstack overcloud deploy command), will have a correspondingly named directory.

When using the default roles, these directories would be:

Controller

Compute

ObjectStorage

BlockStorage

CephStorage

A given role directory contains role specific task files and a subdirectory for each host for that role. For example, when using the default hostnames, the Controller role directory would contain the following host subdirectories:

overcloud-controller-0

overcloud-controller-1

overcloud-controller-2

Other files

Files in this section are only present in the project directory if the mistral workflow was used to generate the project directory under /var/lib/mistral/<plan>

ansible.cfg
Ansible configuration file
ansible-errors.json
JSON structured file containing any deployment errors
ansible.log
Ansilbe log file
ansible-playbook-command.sh
Script to reproduce ansible-playbook command
ssh_private_key
SSH private key used by ansible to access overcloud nodes
tripleo-ansible-inventory.yaml
Ansible inventory file
overcloud-config.tar.gz
Tarball of Ansible project directory

Running specific tasks

Running only specific tasks (or skipping certain tasks) can be done from within the ansible project directory.

Note

Running specific tasks is an advanced use case and only recommended for specific scenarios where the deployer is aware of the impact of skipping or only running certain tasks.

This can be useful during troubleshooting and debugging scenarios, but should be used with caution as it can result in an overcloud that is not fully configured.

Warning

All tasks that are part of the deployment need to be run, and in the order specified. When skipping tasks with --tags, -skip-tags, --start-at-task, the deployment could be left in an inoperable state.

The functionality to skip tasks or only run certain tasks is meant to aid in troubleshooting and iterating more quickly on failing deployments and updates.

All changes to the deployed cloud must still be applied through the Heat templates and environment files passed to the openstack overcloud deploy command. Doing so ensures that the deployed cloud is kept in sync with the state of the templates and the state of the Heat stack.

Warning

When skipping tasks, the overcloud must be in the state expected by the task starting task. Meaning, the state of the overcloud should be the same as if all the skipped tasks had been applied. Otherwise, the result of the tasks that get executed will be undefined and could leave the cloud in an inoperable state.

Likewise, the deployed cloud may not be left in its fully configured state if tasks are skipped at the end of the deployment.

Complete the Manual config-download steps to create the ansible project directory, or use the existing project directory at /var/lib/mistral/<plan>.

Note

The project directory under /var/lib/mistral/<plan> is only updated by openstack overcloud deploy if the mistral workflow is used for config-download (e.g., --stack-only is not used).

Tags

The playbooks use tagged tasks for finer-grained control of what to apply if desired. Tags can be used with the ansible-playbook CLI arguments --tags or --skip-tags to control what tasks are executed. The enabled tags are:

facts
fact gathering
common_roles
ansible roles common to all nodes
overcloud
all plays for overcloud deployment
pre_deploy_steps
deployments that happen pre deploy_steps
host_prep_steps
Host preparation steps
deploy_steps
deployment steps
post_deploy_steps
deployments that happen post deploy_steps
external
all external deployments
external_deploy_steps
external deployments that run on the undercloud

See deploy_steps_playbook.yaml for a description of which tags apply to specific plays in the deployment playbook.

Server specific pre and post deployments

The list of server specific pre and post deployments run during the Server deployments and Server Post Deployments plays (see deploy_steps_playbook.yaml) are dependent upon what custom roles and templates are used with the deployment.

The list of these tasks are defined in an ansible group variable that applies to each server in the inventory group named after the Heat role. From the ansible project directory, the value can be seen within the group variable file named after the Heat role:

$ cat group_vars/Compute
Compute_pre_deployments:
  - UpgradeInitDeployment
  - HostsEntryDeployment
  - DeployedServerBootstrapDeployment
  - InstanceIdDeployment
  - NetworkDeployment
  - ComputeUpgradeInitDeployment
  - ComputeDeployment
  - ComputeHostsDeployment
  - ComputeAllNodesDeployment
  - ComputeAllNodesValidationDeployment
  - ComputeHostPrepDeployment
  - ComputeArtifactsDeploy

Compute_post_deployments:  []

<Role>_pre_deployments is the list of pre deployments, and <Role>_post_deployments is the list of post deployments.

To specify the specific task to run for each deployment, the value of the variable can be defined on the command line when running ansible-playbook, which will overwrite the value from the group variable file for that role.

For example:

ansible-playbook \
  -e Compute_pre_deployments=NetworkDeployment \
  --tags pre_deploy_steps
  # other CLI arguments

Using the above example, only the task for the NetworkDeployment resource would get applied since it would be the only value defined in Compute_pre_deployments, and --tags pre_deploy_steps is also specified, causing all other plays to get skipped.

Starting at a specific task

To start the deployment at a specific task, use the ansible-playbook CLI argument --start-at-task. To see a list of task names for a given playbook, --list-tasks can be used to list the task names.

Note

Tasks that include the step variable or other ansible variables in the task name do not work with --start-at-task due to a limitation in ansible. For example the task with the name:

Start containers for step 1

won’t work with --start-at-task since the step number is in the name (1).

Previewing changes

Changes can be previewed to see what will be changed before any changes are applied to the overcloud. To preview changes, the stack update must be run with the --stack-only cli argument:

openstack overcloud deploy \
  --stack-only
  # other CLI arguments

Once the update is complete, complete the Manual config-download steps to create the ansible project directory.

When ansible-playbook is run, use the --check CLI argument with ansible-playbook to preview any changes. The extent to which changes can be previewed is dependent on many factors such as the underlying tools in use (puppet, docker, etc) and the support for ansible check mode in the given ansible module.

The --diff option can aloso be used with --check to show the differences that would result from changes.

See Ansible Check Mode (“Dry Run”) for more details.

Generating overcloudrc

In some cases, it may be required to manually generate the overcloudrc.v3 file if ansible-playbook was used manually outside of the workflow.

The following command can be used to generate the overcloudrc.v3 file. Save the output of the command to the file where you want the contents saved:

openstack action execution run \
  --save-result \
  --run-sync \
  tripleo.deployment.overcloudrc \
  '{"container":"overcloud"}' \
  | jq -r '.["result"]["overcloudrc.v3"]' \
  > overcloudrc.v3

If needed, substitute the name of the deployment for overcloud.

config-download with Heat SoftwareDeployment outputs

config-download does not support outputs on Heat SoftwareDeployment/SoftwareConfig resources. Often, deploy_steps_tasks can be used to reproduce the same behavior that would be handled by an output, by using Ansible tasks and the register keyword.

Creative Commons Attribution 3.0 License

Except where otherwise noted, this document is licensed under Creative Commons Attribution 3.0 License. See all OpenStack Legal Documents.
